Allgeier Martin has an ongoing relationship with Freeman Health System Commercial Development. Site developments include boundary and topographic surveying, stormwater management and design, utility relocations/extensions, parking lot layouts, grading plans, lighting, street upgrades, and city zoning standards coordination.

• Freeman Women's Center
• Joplin Family Y
• Oncology Building
• Landmark Hospital
• Freeman Medical Office Building
• Freeman Sports Medicine Clinic

After being destroyed by an EF5 tornado, Joplin High School was rebuilt and Allgeier Martin provided site redevelopment services on a 66-acre campus.

• FEMA floodplain coordination with stormwater management, layout, and design
• Water quality features include bio-retention, water quality basins, and rain water harvesting
• Traffic analysis
• Roadway and parking facility design
• Site plan, excavation, and grading layout and design
• Abandonment and relocation of sanitary sewer and water mains

To reduce the effects of stormwater in Joplin’s central business district, engineering capacity improvements for the routing and resizing of the Willow Branch Storm Drainage was provided.

• Phase 1: 2,200 linear feet of newly sized box culverts
• Phase 2: 3,200 linear feet of newly sized box culverts
• Phase 3: 1,680 linear feet of 60" stormwater RCP, 38 linear feet of 18" RCP and 177 linear feet of 15" RCP
• Phase 4: 360 linear feet of improved concrete ditch, 240 linear feet of newly sized box culverts and 60 linear feet of 15" RCP
• Phase 5: one 8' x 5' box culvert, 748 linear feet of improved concrete ditch and 27 linear feet of 15" RCP
• Total construction cost of all phases was $3 million

Freeman Hospital of Joplin, Missouri retained Allgeier Martin to remove and replace existing corrugated metal pipes with two – 12’ x 4’ Reinforce Concrete Box Culvert’s. The project cost was $230,000.

• 220 Square Yards of Type 1, 6-inch Aggregate Base
• Removed and replaced 200 cubic yards of unsuitable subgrade
• 70 tons of new 6-inch bituminous pavement

To reduce the effects of stormwater flooding near 7th & Illinois, Allgeier Martin completed an analysis for the Joplin Creek watershed and designed an eleven-acre detention pond within a city owned park.

• Landscaping plan that converts eleven acres to native grasses and trees
• The detention pond provides the public with a natural environment for wildlife and public viewing
• Construction Cost $900,000

The unstable bank along Little Sugar Creek was moving approximately five feet per year. With newly designed and installed weirs, the bank is now a well-vegetated, stable bank providing an excellent fish habitat and protecting the land from further erosion.

• Thirteen original bendway weirs protect the streambank
• Five additional bendway weirs were added after the success of the first thirteen
• The channel has slightly deepened
• Cooperative project between the Missouri Department of Conservation and a private land owner

Allgeier Martin was selected by the Jasper County Commission to provide complete design engineering and construction inspection services for a structurally deficient bridge on the original Route 66 Highway. During design, the Old Route 66 Bridge was deemed historically significant by the Missouri State Historic Preservation Society because of its association with the original Route 66. In an effort to reach an agreement, the original bridge was historically documented and the aesthetics were incorporated into the new bridge.

• Designed to resemble the original bridge
• 16’-16’-16’ cast-in-place slab deck
• Concrete baluster railing
• Utilization of the original bridge plaque
• Concrete baluster railing, recently used in the Highway 76 bridge over Lake Taneycomo, was used to capture the original bridge railing appearance while providing a crashworthy barrier according to current design standards
• Project recognized in 2016 by the Joplin Trails Coalition and Jasper County for its aesthetic details, original to the era and Route 66.

Allgeier Martin was selected to create engineering solutions to rehabilitate this 1-mile section of highway. The solutions included dowel bar retrofits, full and partial depth repairs, and diamond grinding. The project was completed under budget and ahead of schedule. The budget was $1,100,000 and the low bid for construction came in at $881,000. The surplus budget allowed the City to address additional pavement repairs not in the original plan.

In March of 2010, this project was recognized as the best Concrete Restoration Project. This was awarded by the MO/KS Chapter of the American Concrete Paving Association (ACPA). In September of 2010, the City received a National Silver Award Winning Project from the ACPA’s National Convention.

• 2,307 dowel bar retrofit units
• 5,800 square yards of full and partial depth pavement repairs
• 27,000 square yards of diamond grinding
• Completed 58 days ahead of schedule
• $219,000 of surplus budget to extend the project for preventative repairs

AMA designed a new signalized intersection on Highway 71 that allows properties on each side of the Highway to be developed commercially. We worked with the City of Jane, Missouri Department of Transportation and property owners.

• Protected turn lanes
• Video Detection
• Advanced warning beacons
• Wireless interconnect capabilities

The Missouri Department of Transportation selected Allgeier Martin to provide complete design engineering services for a three span concrete, pre-stressed I-girder bridge. The design was in metric, and involved three 16.5 meter pre-stressed concrete I-girder spans with safety barrier curb and pile footings. Allgeier Martin’s services included design calculations and plans for construction for the highway bridge.

Teamed with Design Nine, AMA designed a grade separation of Connecticut Avenue and the Kansas City Southern railroad. We raised the railroad approximately sixteen feet and lowered Connecticut about seven feet.

• Stormwater conveyance to reduce upstream flooding of the railroad
• Road design, right-of-way acquisition and utility relocation assistance
• New electric transmission and distribution line alignments for Empire District, designed by AMA

Design of a replacement bridge across the James River east of Hurley, MO.

• 105' triple span, pre-stressed, bulb tee I-girder bridge
• Bridge is on a 20-degree skew with the final span on the beginning of the curve
• Bridge is on an 8% slope from one end to the other

During heavy rain events, it is typical for older sanitary sewer systems to experience inflow and infiltration (I/I) of rainwater. AMA has prepared I/I reduction plans and designed projects to rehabilitate or replace aging sewer lines and manholes for multiple communities.

• I/I testing is completed by smoke testing, TV and manhole inspections
• Best solutions may include pipe replacement, relining of pipe, manhole repair or replacement
• Clients include: Aurora, MO; Butler, MO; Carl Junction, MO; Carterville, MO; Girard, KS; Joplin, MO; Nevada, MO; Webb City, MO

Planning, design and construction phase engineering to improve the wastewater collection system. Funding for the project was through USDA Rural Development and the Community Development Block Grant programs.

• 4.5 million gallons of sludge dredged from the waste stabilization ponds
• 2,600 lineal feet of 6-inch pressure sewer replaced
• 7,000 lineal feet of 8-inch to 12-inch gravity sewer replacement
• 22,000 lineal feet of sewer main rehabilitation with cured-in-place pipe (CIPP)

Inspection and evaluation of the Lone Elm drainage basin sanitary sewer. A work plan was developed for the repair, replacement and/or rehabilitation of system deficiencies. The information was merged with the City’s GIS data for better planning. A general cost estimate for improvements was established.

• 106,000 lineal feet of 8-inch to 18-inch gravity sewer
• 415 manhole inspections
• 50,000 lineal feet of 8-inch gravity sewer smoke testing

Planning and design for the renovation and replacement of sanitary sewer assets affected by the Joplin May 2011 Tornado. This involved CCTV data, manhole inspections, later line inspections and updating the City’s GIS system. Funding was provided through CDBG disaster relief with strict deadlines for project completion.

• 327,950 lineal feet of 8” to 18” sewer main replacement or rehab
• Total project area covered approximately 2,742 acres
• Total construction costs were approximately $20 million

Design for the replacement of an aerial sewer line crossing over Turkey Creek. The new design is a double barrel structural design of 90 linear feet of 24” sewer line.

Because of population growth and the addition of wastewater from the Village of Airport Drive, Carl Junction has expanded their wastewater treatment plant three times. We provided planning, design and construction phase services for all expansions.

• First two expansions included parallel oxidation ditches, three clarifiers, UV disinfection, compartmentalized sludge lagoons and peak flow pumping
• Third expansion included an additional oxidation ditch, additional clarification basins, modification of the return activated sludge handling, conversion of clarifiers to aerobic digesters and UV equipment replaced
• 1.6 MGD Average with 5.7 MGD Peak Capacity

Planning, design and construction phase services for expansions in 1997, 2003 and 2019. First expansion increased capacity to 7.0 MGD. The 2003 improvements reduced ammonia concentration, addressed odor control and replaced the mechanical screening. The 2019 improvements addressed increasing biological treatment capacity by 25%, resolved waste biosolids and improved effluent disinfection.

• 2003 existing clarifiers converted to activated sludge basins via inclusion of turbine type aerators
• 2003 Chlorination/Dechlorination facilities replaced with UV disinfection
• 2019 Ten removeable air differ assemblies and two 100-HP blowers installed for additional aeration capacity
• 2019 UV disinfection system replaced by low-pressure, high-output system to improve reliability and efficiency
• 2019 Sludge holding basin converted to additional aerobic digester and new mechanically cleared bar screen installed

Design of new sequencing batch reactor (SBR) type activated sludge wastewater treatment plant. The SBR plant replaced a rock trickling filter plant. The SBR process was chosen due to its flexibility in nutrient removal.

• Average 4 MGD and Peak 6 MGD capacity
• Design elements include raw sewage pumps, grit and grease removal, SBR basins with diffused aeration and mechanical mixers, UV disinfection and re-aeration prior to discharge
• Waste sludge is aerobically digested, mechanically thickened and stored prior to liquid sludge hauling and land application

Planning, design and construction phase services for the original plant (1988). When BOD and suspended solids regulations tightened, improvements were designed (2010) to accommodate. With the original design, 4 miles of gravity sewer and 2.4 miles of pressure sewer were also designed and constructed. Various other improvements have occurred throughout the lifetime of the plant.

• 1988 6.5 MGD Average and 15 MGD Peak flow capacity
• 1988 Includes a 12 MGD raw sewage lift station with aerated grit removal and comminution
• 2016 Addition of activated sludge facilities, clarifiers, effluent filters and UV disinfection
• 2016 Improvements to aerobic sludge digesters, gravity belt thickener and related sludge handling equipment to improve sludge stabilization and land application operations

Planning, design and construction phase services for a new WWTP to replace the Lone Elm WWTP (1982). Originally, the two plants were connected by a 60” gravity sewer. The Lone Elm WWTP was taken offline and expansion made to Turkey Creek WWTP in 1995. Additional improvements were made in 2013, 2015 and 2018.

• 1982 27.5-acre flow equalization basin utilized to divert up to 90 MGD peak flows
• 1995 Original Average Flow was 6 MGD and 12 MGD Peak. 1995 Expansion increased capacity to 15 MGD Average and 24 MGD peak
• 1995 Expansion included flow diversion pumping station, additional grit removal, two clarifiers, conversion of two final clarifiers to intermediate clarifiers, intermediate pumping station, two oxidation ditch aeration basins, sand filters, sludge thickener and sludge digester complex
• 2013 Improvements to biosolids management which included UV disinfection, improved digestion and dewatering of sludge prior to land application
• 2015 & 2018 Installed new grit removal equipment, replaced screw pump and heat exchanger, cleaned and repainted digester tanks and replaced sludge gas handling equipment

Planning, design, and construction phase services for a major wastewater treatment plant expansion. Improvements were designed to meet advanced effluent limits, correct the rotating biological contractor process, deal with highly variable industrial waste, increase biological and hydraulic loading, and improve nutrient removal capabilities.

• Increased capacity to 6 MGD average and 12 MGD peak
• New raw sewage screw pumps, mechanical screening, and aerated grit removal before primary clarification
• New trickling filter towers and activated sludge basins
• Waste sludge is aerobically digested, gravity belt thickened and stored prior to land application

Design and construction phase services for a wastewater treatment plant expansion. The city wished to increase hydraulic capacity from 4 MGD to 10 MGD. The original activated sludge aeration basin was converted to aerobic digesters and sludge holding tanks. Two new aerobic digester basins were added by converting the existing aeration basins.

• Lime mixing structure, lime silo, and feed equipment added for a more suitable land application sludge
• New, larger lab building which included restroom, lockers, offices, meeting and break rooms
• SCADA-based motor control center
• Variable frequency drive pumps throughout the facility

AMA planned and designed a new wastewater treatment facility when the old lagoon system began to exceed capacity and effluent limits were tightened. The new facility treats an average 0.9 MGD with capacity for 3 MGD peak flow.

• Funding and regulatory permitting were for a Missouri community with the treatment facilities located in Oklahoma. AMA engineers worked seamlessly with both states for a successful project
• Two extended aeration basins with nested clarifiers
• Raw pumping grit removal, mechanical screening, UV disinfection, aerobic digesters and laboratory/office space
• SCADA interface for motor control center

AMA planned and designed the original regional plant to combine treatment for Webb City, Oronogo and Carterville. We expanded the plant in 2005 to 4.8 MGD average and 9.3 MGD peak flows. In 2018, a solution was needed to better handle biosolids with high zinc levels.

• New biosolids homogenizing tank pumps to centrifuge building and composting pad. Dewatering, combining biosolids with organic materials and composting allows the biosolids to attain zinc levels appropriate for land application
• In cooperation with EPA and Missouri DNR, constructed wetlands reduce zinc levels for discharge. Two discharge permits, one for mechanically treated outfall and another for the wetlands discharge, allows for monitoring the effectiveness of zinc removal
• Plant includes mechanical screening, raw sewage lift pumps, oxidation ditches, four center feed clarifiers, UV disinfection, flow equalization basins, sludge holding lagoon, centrifuge, lab and control buildings

Carl Junction is a growing community with a population of approximately 7,772. The city provides water by six deep wells, five elevated storage tanks, and over 36 miles of water lines. Due to the steady increase in population over the last 20 years, the City determined the need to improve their system to meet the current and future demands.

2006

• Two deep wells with chlorination
• Two 60,000-gallon elevated storage tanks
• 17,000 LF of 8”, 10” and 12” diameter distribution mains, and the addition of fluoride
• Funded by the State Revolving Loan Program

2012 & 2017

• Developed and helped implement a Unidirectional Water Flushing Program
• Replace existing SCADA Radio System with Ethernet Cellular Modern Technology

The Carthage Water and Electric Plant (CWEP) is responsible for operating and maintaining the electric, water, and wastewater systems. CWEP hired Allgeier Martin to conduct a comprehensive study of immediate and long-term water demand and system needs. This includes water supply, treatment, storage and distribution. The study consisted of the following tasks:

• Assessment of historical water demand and projected future demand
• Evaluation of water facilities and their ability to meet future demands
• Assessment of current water treatment capacity and reliability
• Assessment of current operating practices
• Analysis of alternatives to increase water supply, treatment, storage, and distribution capacities
• Assessment of anticipated regulatory treatment requirements, and their effect on the existing system and proposed improvements
• Following the completion of this study, Allgeier Martin provided design services for recommended improvements during a series of annual projects.

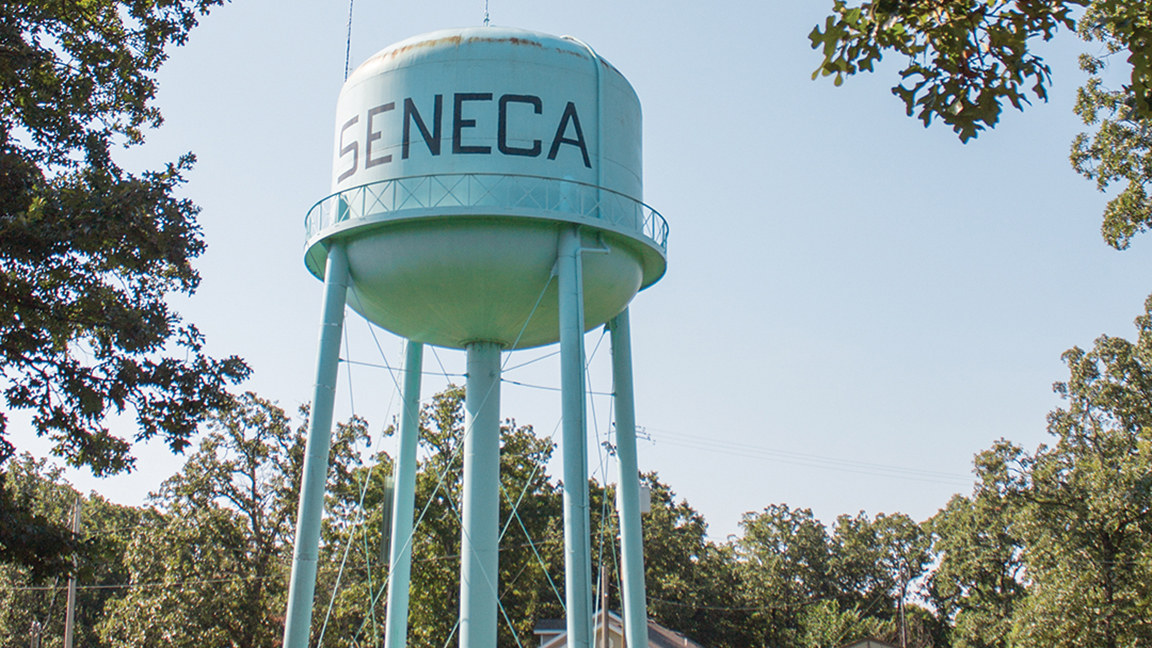

Allgeier Martin and Associates, Inc. was retained by the City of Seneca for improvements to their water system.

• Water line extensions
• Drilling of a new deep water supply well
• Addition of chlorination to the system
• Addition of a booster pump to increase pressure in a defined portion of the system
• Prepared the preliminary engineering report, which was a comprehensive study of the entire system
• Provided design, bidding and construction phase services
• Computer model of the entire system was developed to analyze the hydraulics of the system

Vernon County PWSD No. 2 has been in service since 1967 and now serves almost 1,200 people through 460 meters. Since its inception the District has purchased all of its water on a wholesale basis from a neighboring public water supply. Various circumstances in 1995 led the district to consider developing their own water supply and treatment system. Allgeier Martin was retained to prepare a study examining the feasibility of a new water supply and treatment system. The study concluded that it was indeed feasible and desirable for the District to produce its own water.

• 950 ft deep water supply well
• 227 gpm water treatment facility (aeration, chlorination, high service pumps)
• 200,000 gallon elevated water storage facility
• New office building
• Preparation of cost estimates
• Assistance at public hearings
• Assistance with grant applications and preparation of grant and loan applications
• Basic design phase and construction phase engineering services and on-site inspection during construction
• $650,000 project financed through the Missouri DNR SRF program

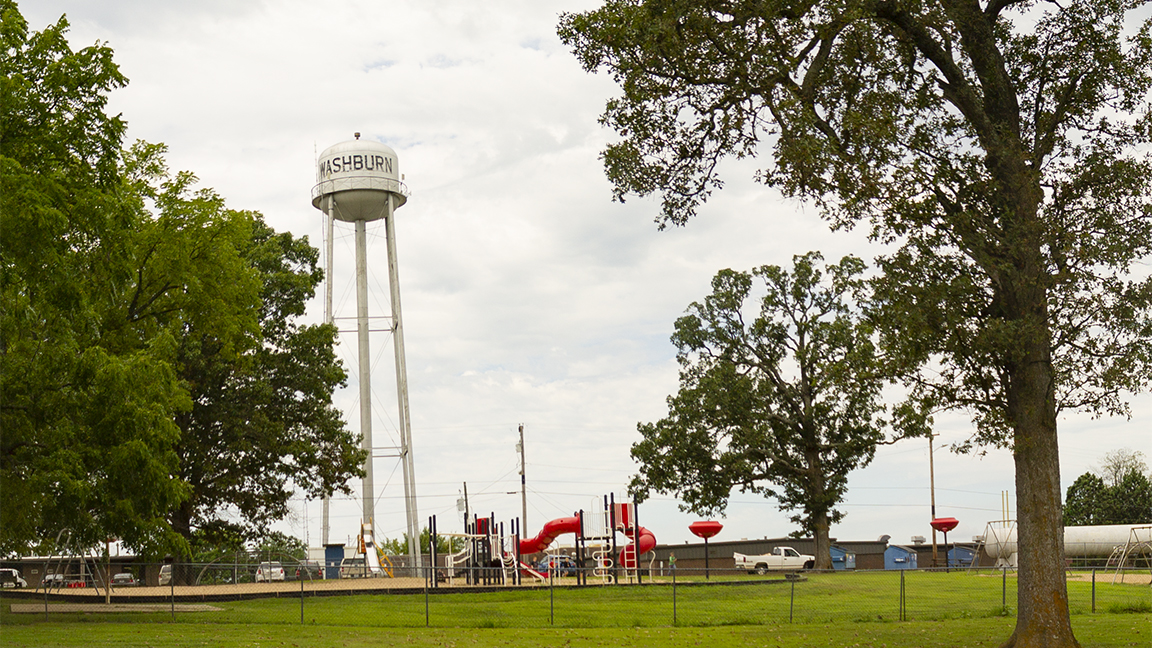

Allgeier Martin created a computer model of the system, utilizing WaterCAD during the initial review and design of the project. We also assisted the City with grant application and loan funding, evaluating the City’s water rates. Recommendations were provided to increase rates in order to improve revenues to cover the loan for improvements.

The improvements included a new deep well, a new pedestal type tower, modifications to the existing tower, installation of a SCADA system, chlorination facilities for both wells, and modifications to the distribution system. The distribution modifications improved pressures and created two pressure zones within the system. Our design anticipated future growth within the system, and attempted to enhance fire flow from both wells in both pressure zones. Easement preparation acquisition assistance was also provided.

• Construction Costs totaled $1.15 million
• 6,460 linear feet of water line installed, sizes 2”- 12”
• 19 valves installed
• 6 fire hydrants installed
• 125,000-gallon elevated single step pedestal water tower

An in-depth analysis and study of the City’s water distribution system was performed with an emphasis on evaluating alternative improvements that would be the most beneficial in improving system flows and pressures during fire demand situations.

Allgeier Martin summarized the results of the computer modeling and analysis, and presented them in a written report. The report presented descriptions and cost estimates for recommended system improvements.

• Reviewed the current map of the City’s water distribution system, and with input from City personnel, revised it to show recent additions and changes
• Reviewed records of fire hydrant tests and incorporated that data into study
• Reviewed usage data to determine average & peak demands
• Recommended improvements included development of a SCADA system, future elevated water storage facilities, and water main replacements and extensions

Allgeier Martin designed improvements to Coffeyville’s 7 million gallon per day water treatment plant. Water is drawn from the Verdigris River and is delivered to ground storage reservoirs located above the City. Allgeier Martin provided construction phase oversight and administration.

• Rapid mix facilities installed ahead of the upflow clarifiers
• Upflow clarifiers drive replaced/repainted
• Renovation of sand/anthracite filters, including replacement of filter media, control valves,backwash troughs and instrumentation, and inclusion of filter-to-waste provisions
• Filter control system replacement
• Alum, lime, and carbon feed equipment replacement
• Construction of facilities for control of filter backwash waste
• New backwash pump and variable frequency drives for all high service and backwash pumps
• Reroofing pump intake structure and buildings, repaving, sealing clearwell roof, tuck pointing structures, etc.
• Financed through the Kansas Public Water Supply Loan Fund

The City of Monett’s municipal water system has an average daily demand from residential, commercial and industrial users of approximately 2.8 million gallons. With demand increasing, the City recognized the need for a thorough study for expanding the system’s supply, storage, and distribution facilities. Allgeier Martin was selected to provide a comprehensive plan for system improvements.

The study recommended construction of a water treatment plant to operate in conjunction with three of the city’s wells, installation of municipal water lines and construction of a booster pump station to supplement water to the higher pressure side of the City’s distribution system. Allgeier Martin was retained to provide design and construction phase services for a 4.0 Million gallon per day water treatment plant.

• High rate clarification through use of a “ballasted” floc
• Gravity filtration
• Chlorination and clear well storage prior to delivery to system via high service pumps
• Chemical feed facilities for the addition of alum, polymer, and hydrofluorosilicic acid
• Flexible membrane lined earthen basin for flow equalization of wastewater from the plant treatment process prior to discharge to the sanitary sewer
• Office space, shop, conference room, and lab facilities
• Finished on time and within budget, with an increase of only $15,000 from the original $11.3 million construction contract
• Funded by Missouri SRF program through a combination of grant and loan funds
